$Database Transactions

A database transaction is a logical unit of work that consists of one or more database operations (such as reads, writes, updates, or deletes) that must be executed as an indivisible unit.

Transactions transform a database from one consistent state to another, ensuring that either all operations within the transaction succeed or none of them take effect.

• Logical Unit: Groups related operations that represent a complete business action
• State Transformation: Moves the database from one valid state to another
• All-or-Nothing Execution: Either completes entirely or has no effect at all

BEGIN TRANSACTION;
    UPDATE accounts SET balance = balance - 100 WHERE account_id = 'A123';
    UPDATE accounts SET balance = balance + 100 WHERE account_id = 'B456';
    INSERT INTO transaction_log (from_account, to_account, amount, timestamp)
        VALUES ('A123', 'B456', 100, NOW());
COMMIT;

ACID properties

ACID properties define the fundamental guarantees that database transactions must provide to ensure reliability and consistency:

Isolation

Isolation Anomalies

Dirty Read: Reading uncommitted changes that might be rolled back

-- Transaction 1
UPDATE products SET price = 50 WHERE id = 1;
-- (not yet committed)

-- Transaction 2 (Read Uncommitted)
SELECT price FROM products WHERE id = 1; -- Sees 50
-- Transaction 1 rolls back

Non-Repeatable Read: Getting different values when reading the same row twice

-- Transaction 1
SELECT price FROM products WHERE id = 1; -- Returns 100

-- Transaction 2
UPDATE products SET price = 150 WHERE id = 1;
COMMIT;

-- Transaction 1
SELECT price FROM products WHERE id = 1; -- Returns 150

Phantom Read: New rows appearing that match a previous query condition

-- Transaction 1
SELECT COUNT(*) FROM orders WHERE status = 'pending'; -- Returns 5

-- Transaction 2
INSERT INTO orders (status) VALUES ('pending');
COMMIT;

-- Transaction 1
SELECT COUNT(*) FROM orders WHERE status = 'pending'; -- Returns 6

Serialization anomaly(Write Skew): successfully committing a group of transactions is inconsistent with all possible orderings of running those transactions one at a time.

-- Transaction 1 - Dr. Alice wants to go off-call, Read current on-call doctors, Alice checks if there are enough other doctors on call before she goes off.
SELECT COUNT(*) FROM Doctors WHERE status = 'On-Call'; -- Returns 2

-- Transaction 1: Logic Check (based on read count), If count > 1, Alice can go off-call. (2 > 1, so TRUE), at this point, imagine a delay or complex operation within Transaction A, before it attempts to update.

-- Transaction 2 - Dr. Bob also wants to go off-call, Read current on-call doctors, Bob checks if there are enough other doctors on call before he goes off.
SELECT COUNT(*) FROM Doctors WHERE status = 'On-Call'; -- Returns 2 (Still sees 2, as T1 hasn't committed)

-- Transaction 2: Logic Check (based on read count), if count > 1, Bob can go off-call. (2 > 1, so TRUE), Update Dr. Bob's status, commits
UPDATE Doctors SET status = 'Off-Call' WHERE doctor_id = 2;
COMMIT;

-- Back to Transaction 1: Update Dr. Alice's status, commits
UPDATE Doctors SET status = 'Off-Call' WHERE doctor_id = 1;
COMMIT;

-- Check consistency rule:
SELECT COUNT(*) FROM Doctors WHERE status = 'On-Call'; -- Returns 0 (Violation: 0 < 1)

Isolation Levels

Isolation levels represent different trade-offs between data consistency and system performance. The SQL standard defines four isolation levels:

Locking Mechanisms

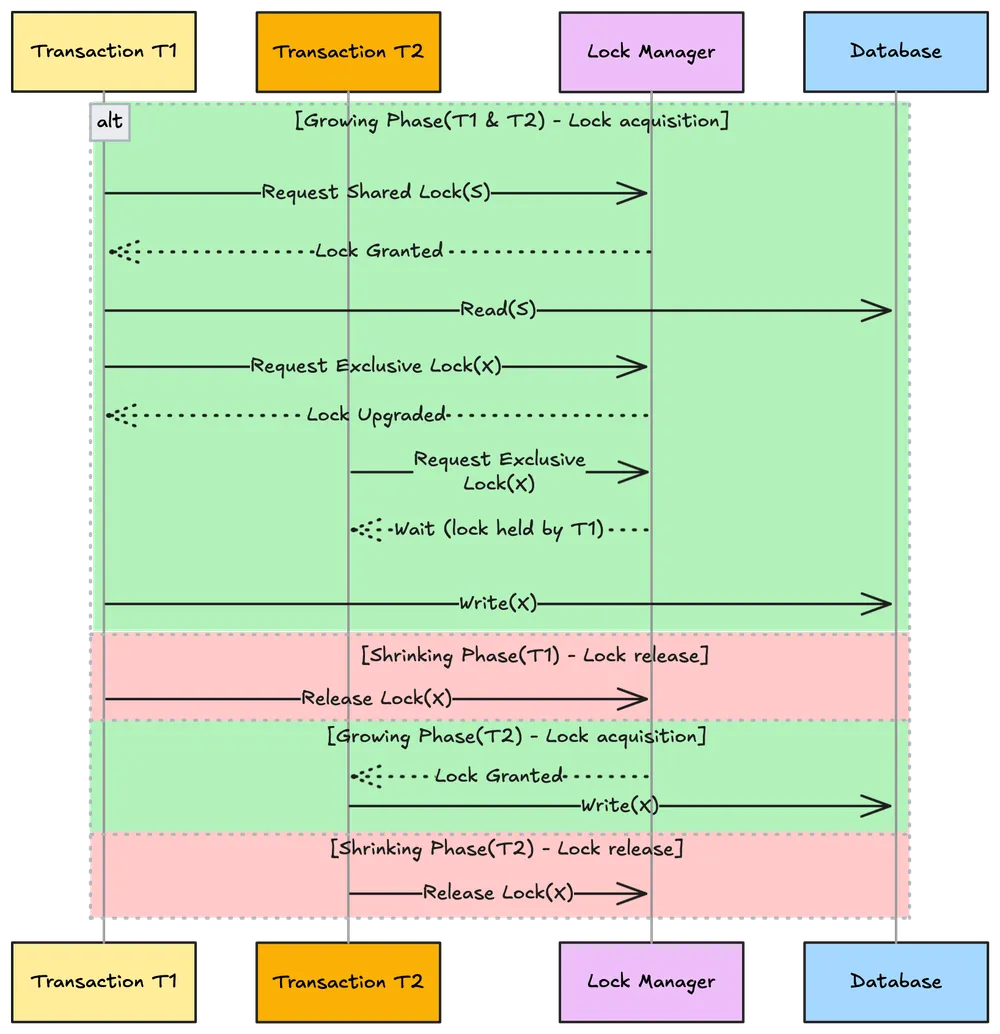

Two-Phase Locking (2PL):

• Growing Phase: Acquire locks as needed
• Shrinking Phase: Release all locks at transaction end
• Variants: Strict 2PL (holds all locks until commit)

Lock Types:

• Shared (S) Locks: Allow concurrent reads
• Exclusive (X) Locks: Prevent all concurrent access

Other types of locks

• Intention Locks: which do not directly lock a node, but instead denote the existence, or intent to add, a lock of the specified type lower in the node hierarchy.
• Predicate Locks: Instead of locking records, lock predicates

Multi-Version Concurrency Control (MVCC)

MVCC maintains multiple versions of data to allow concurrent access without locking:

Key Concepts:

• Each transaction sees a consistent snapshot of the database
• Writers don’t block readers, readers don’t block writers
• Old versions are garbage collected when no longer needed

Implementation Details:

Row Version Structure:
[Row Data | Transaction ID | Pointer to Previous Version]

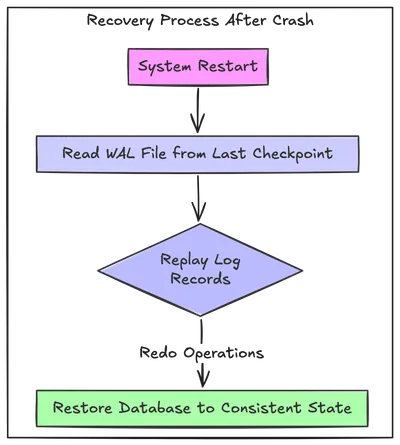

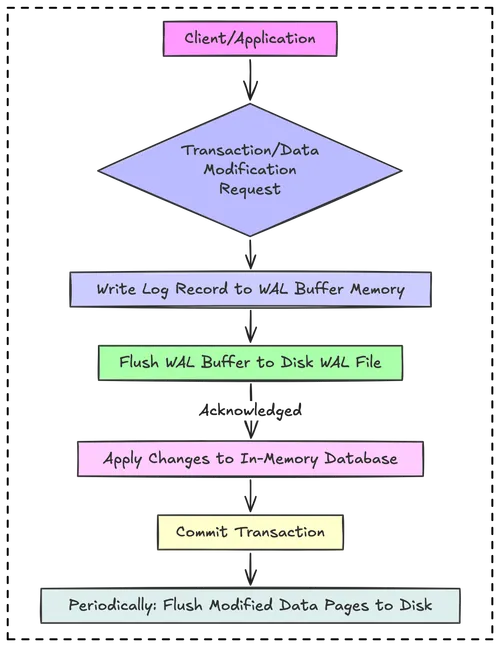

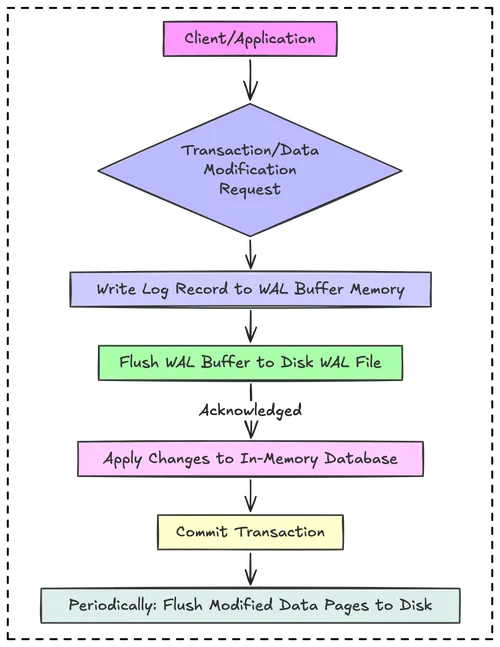

Write-Ahead Logging (WAL)

WAL ensures durability and enables recovery:

1. Log Before Write: Changes are first written to the log
2. Force Log at Commit: Log records must be on disk before commit completes
3. Background Flushing: Data pages written to disk asynchronously

Log Record Types:

• REDO: Information to replay changes
• UNDO: Information to reverse changes
• COMMIT/ABORT: Transaction outcome markers

Commit Protocols

Local Transactions:

1. Write all changes to WAL
2. Mark transaction as committed in log
3. Return success to client
4. Asynchronously apply changes to data pages

Distributed Transactions

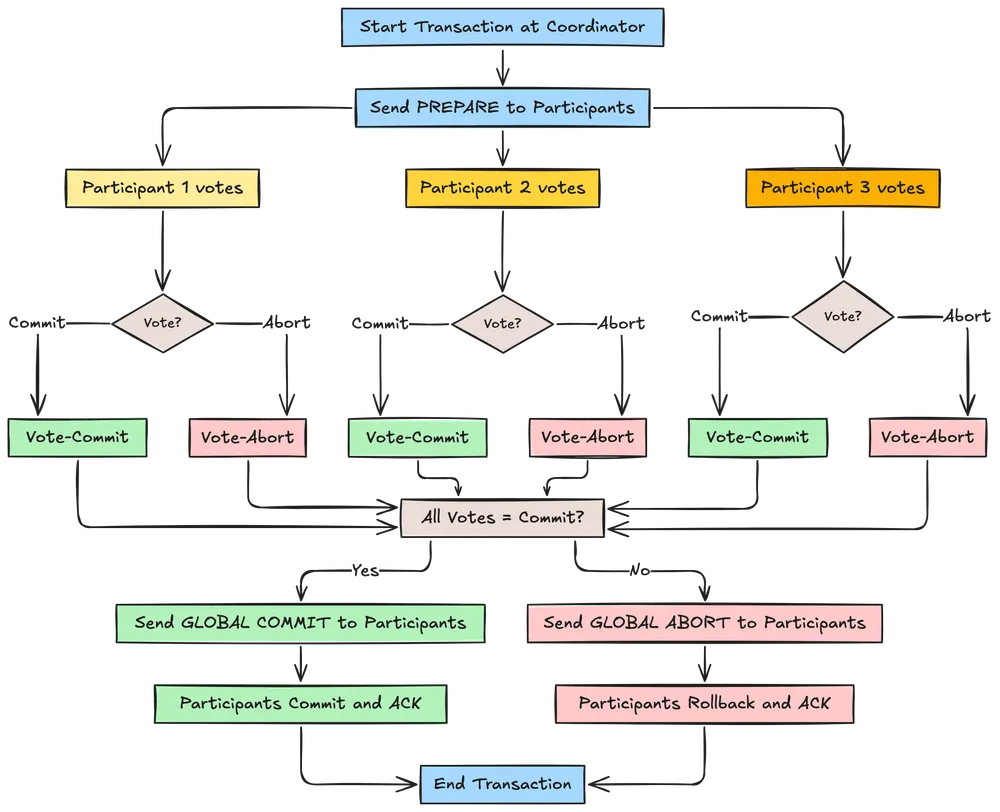

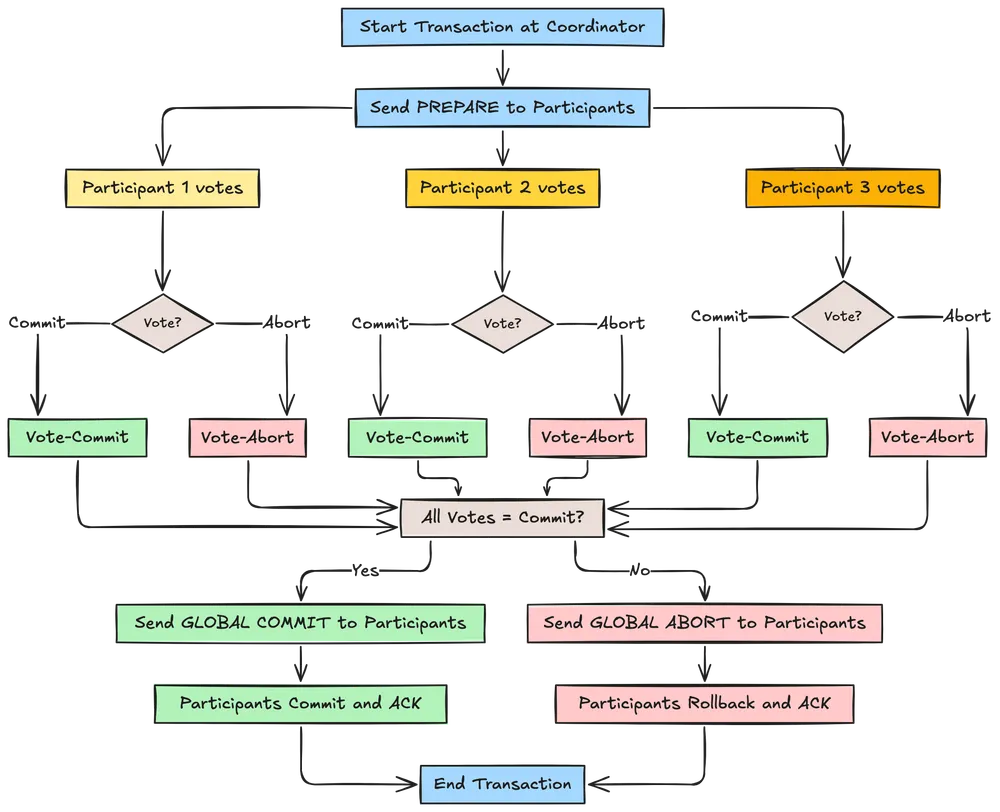

Two-Phase Commit:

Phases:

1. Prepare Phase: All participants vote to commit or abort
2. Commit Phase: Coordinator instructs final outcome based on votes

Cons:

• Single point of failure (Coordinator)

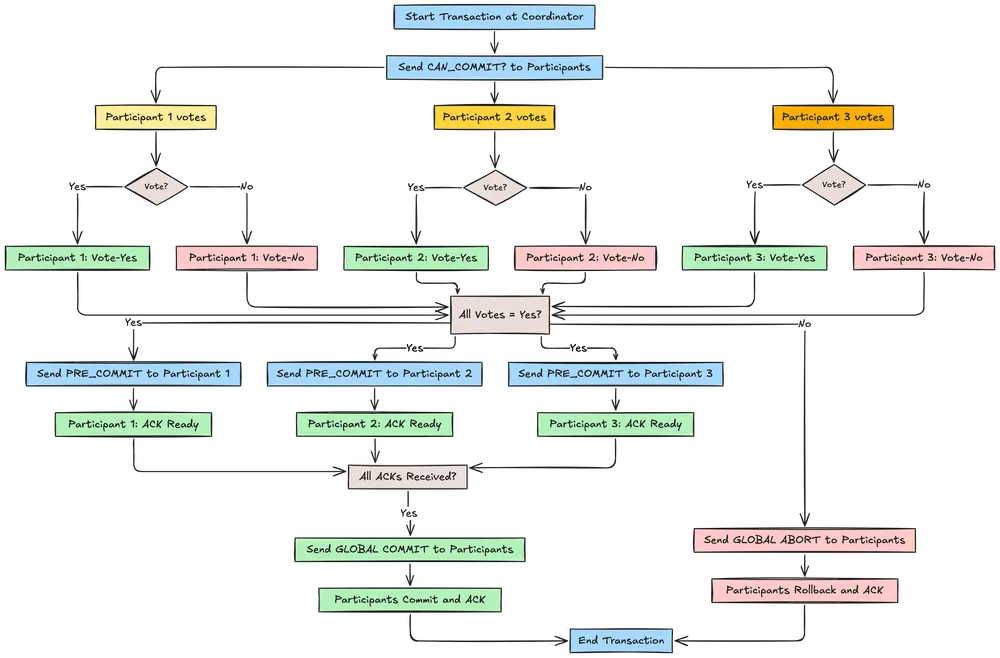

Three-Phase Commit:

Improve fault tolerance compared to 2PC by reducing the risk of indefinite blocking.

• Phase 1 (Prepare): Same as 2PC.
• Phase 2 (Pre-Commit): The coordinator, upon receiving all “yes” votes, sends a “pre-commit” message. Participants acknowledge the message. This phase ensures participants are ready to commit.
• Phase 3 (Commit/Abort): If all participants acknowledge the “pre-commit” message, the coordinator sends the final “commit” or “abort” decision.

The pre-commit phase allows participants to prepare for commit, and if the coordinator fails after this phase, participants can still decide whether to commit or abort based on their pre-commit state, preventing indefinite blocking.

Database-Specific Implementations

PostgreSQL

MVCC Implementation: Stores multiple row versions inline with visibility information

Isolation: Every transaction in Postgres gets a transaction ID called XID. This includes single one statement transactions such as an insert, update, or delete, as well as explicitly wrapping a group of statements together via BEGIN - COMMIT. When a transaction starts, Postgres increments an XID and assigns it to the current transaction. Postgres also stores transaction information on every row in the system, which is used to determine whether a row is visible to the transaction or not.

WAL: Sophisticated WAL with full-page writes for torn-page protection

Unique Features:

• Rich set of isolation levels including true serializable
• Advanced SSI implementation detecting write skew anomalies
• Powerful LISTEN/NOTIFY for transaction coordination

More reading:

1. https://arxiv.org/pdf/1208.4179
2. https://www.postgresql.org/docs/17/wal-intro.html

MySQL/InnoDB

MVCC Implementation: Maintains undo logs in separate table space. InnoDB uses the information in the rollback segment to perform the undo operations needed in a transaction rollback. It also uses the information to build earlier versions of a row for a consistent read. Isolation: Next-key locking to prevent phantoms

WAL: Repeatable Read with some non-standard behaviors

Features:

• Gap locking for phantom prevention
• Adaptive hash indexes for frequent queries
• Change buffering for secondary index updates

More reading:

1. https://dev.mysql.com/doc/refman/8.4/en/innodb-multi-versioning.html
2. https://dev.mysql.com/doc/refman/8.4/en/innodb-locking.html

Anti-Patterns

Long-Running Transaction Anti-Pattern

Keeping transactions open for extended periods while performing non-database operations.

-- BAD: Long-running transaction
BEGIN TRANSACTION;
SELECT * FROM orders WHERE status = 'pending';
-- ... application processes data for 30 seconds ...
-- ... makes external API calls ...
-- ... sends emails ...
UPDATE orders SET status = 'processed' WHERE id = 123;
COMMIT;

Minimize transaction scope and use optimistic locking.

-- GOOD: Short transaction with optimistic locking
-- 1. Read data outside transaction
SELECT id, status, version FROM orders WHERE status = 'pending';

-- 2. Process data in application

-- 3. Short transaction for update only
BEGIN TRANSACTION;
UPDATE orders
SET status = 'processed', version = version + 1
WHERE id = 123 AND version = @original_version;

IF @@ROWCOUNT = 0
    ROLLBACK;
    -- Handle concurrent modification
ELSE
    COMMIT;

Nested Transaction Trap

Attempting to use nested transactions incorrectly.

-- BAD: Assuming nested transaction support
BEGIN TRANSACTION; -- Outer transaction
    INSERT INTO orders (...) VALUES (...);

    BEGIN TRANSACTION; -- This doesn't create a new transaction!
        INSERT INTO order_items (...) VALUES (...);
        -- Error occurs here
    ROLLBACK; -- This rolls back EVERYTHING, not just inner "transaction"

COMMIT; -- This will fail because transaction was already rolled back

Use savepoints for partial rollbacks.

-- GOOD: Using savepoints
BEGIN TRANSACTION;
    INSERT INTO orders (...) VALUES (...);

    SAVEPOINT order_items_start;
    BEGIN TRY
        INSERT INTO order_items (...) VALUES (...);
    END TRY
    BEGIN CATCH
        ROLLBACK TO SAVEPOINT order_items_start;
        -- Handle error, transaction continues
    END CATCH

COMMIT;

Silent Autocommit Trap

Unaware of autocommit behavior leading to partial updates.

### BAD: Autocommit enabled, no explicit transaction
def transfer_money(from_account, to_account, amount):
    cursor.execute("UPDATE accounts SET balance = balance - %s WHERE id = %s",
                   (amount, from_account))

    # If this fails, the debit above is already committed!
    cursor.execute("UPDATE accounts SET balance = balance + %s WHERE id = %s",
                   (amount, to_account))

Always use explicit transactions for multi-statement operations.

### GOOD: Explicit transaction control
def transfer_money(from_account, to_account, amount):
    try:
        cursor.execute("BEGIN")
        cursor.execute("UPDATE accounts SET balance = balance - %s WHERE id = %s",
                       (amount, from_account))
        cursor.execute("UPDATE accounts SET balance = balance + %s WHERE id = %s",
                       (amount, to_account))
        cursor.execute("COMMIT")
    except Exception as e:
        cursor.execute("ROLLBACK")
        raise

Read-Modify-Write Race Condition

Non-atomic read-modify-write operations.

-- BAD: Race condition between read and write
SELECT quantity FROM inventory WHERE product_id = 123; -- Returns 10
-- Another transaction might modify quantity here
UPDATE inventory SET quantity = 9 WHERE product_id = 123; -- Assumes quantity is still 10

Use atomic operations or proper locking.

-- GOOD: Atomic update
UPDATE inventory
SET quantity = quantity - 1
WHERE product_id = 123 AND quantity >= 1;

-- Check if update succeeded
IF @@ROWCOUNT = 0
    RAISERROR('Insufficient inventory', 16, 1);

Deadlock-Prone Resource Ordering

Inconsistent resource acquisition order causing deadlocks.

-- Transaction A
BEGIN TRANSACTION;
UPDATE accounts SET balance = balance - 100 WHERE id = 1; -- Lock account 1
UPDATE accounts SET balance = balance + 100 WHERE id = 2; -- Lock account 2
COMMIT;

-- Transaction B (running concurrently)
BEGIN TRANSACTION;
UPDATE accounts SET balance = balance - 50 WHERE id = 2;  -- Lock account 2
UPDATE accounts SET balance = balance + 50 WHERE id = 1;  -- Wait for account 1 (DEADLOCK!)
COMMIT;

Always acquire resources in consistent order.

-- GOOD: Consistent ordering (always update lower ID first)
CREATE PROCEDURE transfer_money(@from_id INT, @to_id INT, @amount DECIMAL)
AS
BEGIN
    DECLARE @first_id INT, @second_id INT;
    DECLARE @first_amount DECIMAL, @second_amount DECIMAL;

    IF @from_id < @to_id
    BEGIN
        SET @first_id = @from_id; SET @first_amount = -@amount;
        SET @second_id = @to_id; SET @second_amount = @amount;
    END
    ELSE
    BEGIN
        SET @first_id = @to_id; SET @first_amount = @amount;
        SET @second_id = @from_id; SET @second_amount = -@amount;
    END

    BEGIN TRANSACTION;
    UPDATE accounts SET balance = balance + @first_amount WHERE id = @first_id;
    UPDATE accounts SET balance = balance + @second_amount WHERE id = @second_id;
    COMMIT;
END

Distributed Database Transactions

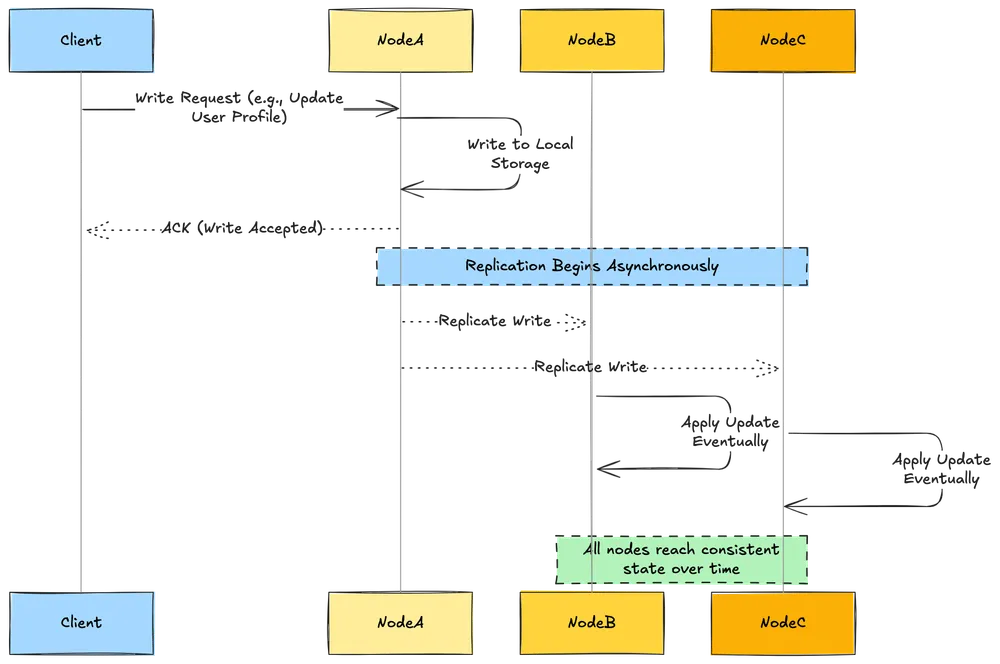

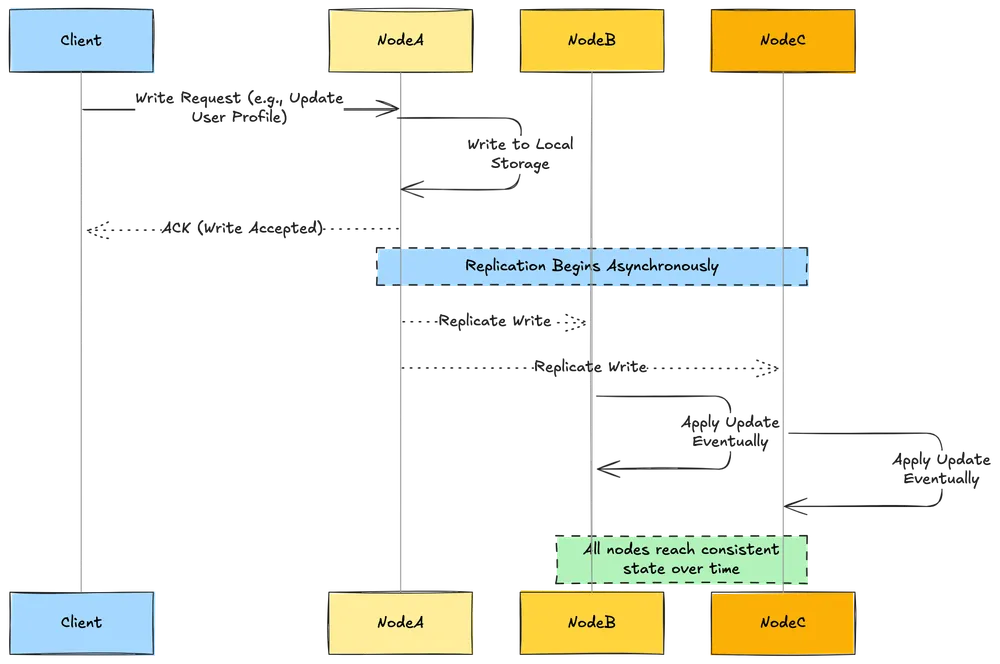

Eventual Consistency Pattern

Accept temporary inconsistency in favor of availability and partition tolerance.

Trade-offs:

• ✅ High availability and performance
• ✅ Scales horizontally
• ❌ Temporary inconsistency
• ❌ Complex conflict resolution

Saga Pattern

Break distributed transactions into a sequence of local transactions, each with compensating actions.

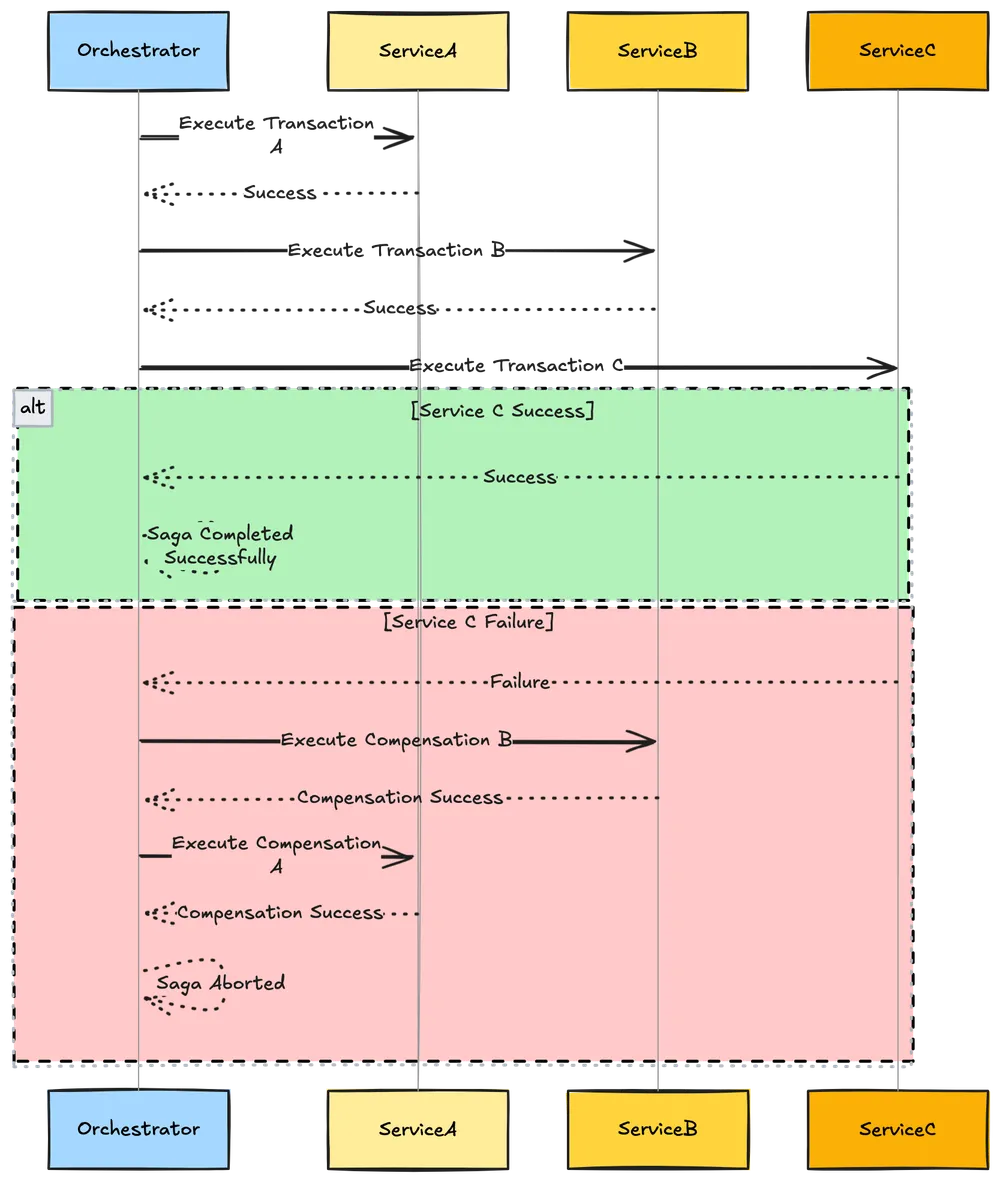

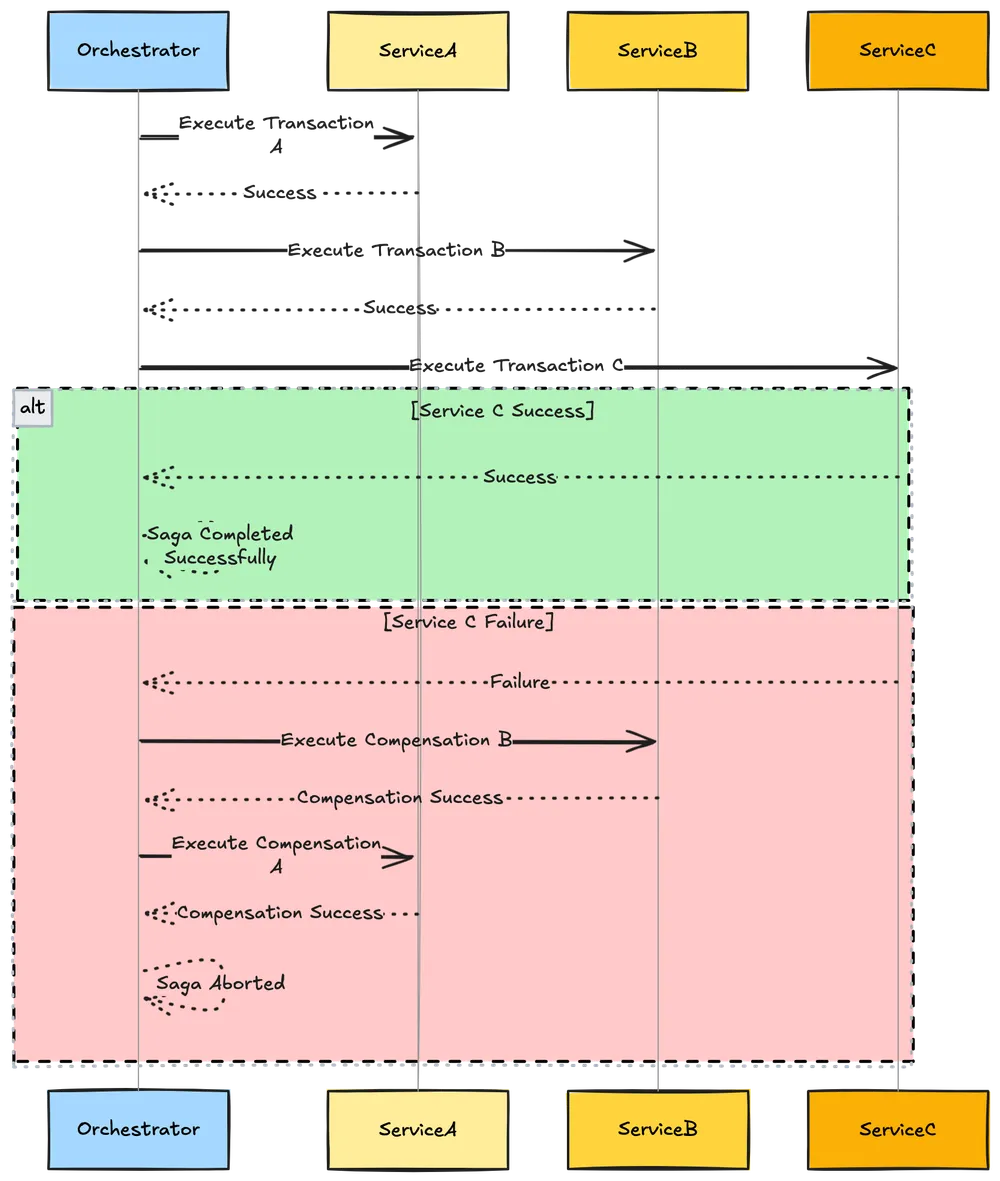

Orchestration-Based Saga

• The Orchestrator directs the workflow (A → B → C).
• If all succeed, the saga completes.
• If any service (e.g., C) fails, the orchestrator triggers compensating actions in reverse order (B → A).
• This ensures data consistency without distributed transactions.

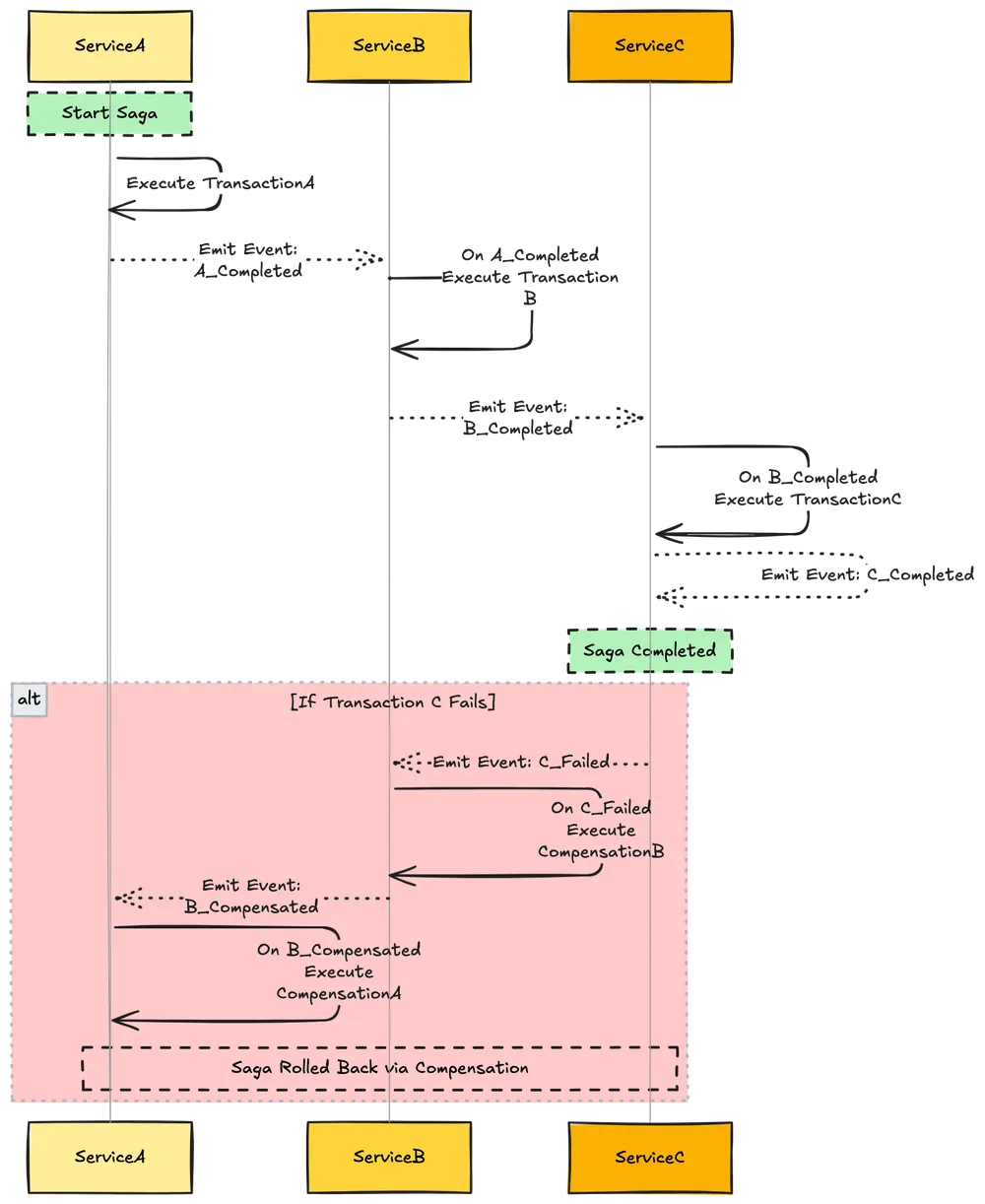

Choreography-Based Saga

• No orchestrator: Services listen to events and act accordingly.
• Each service is autonomous: It knows how to continue the saga or handle failures.
• Event-driven: The saga progresses through a chain of events.

Sources

1. https://www.cs.cmu.edu/~natassa/courses/15-721/papers/p97-astrahan.pdf
2. https://jimgray.azurewebsites.net/papers/thetransactionconcept.pdf
3. https://cs-people.bu.edu/mathan/reading-groups/papers-classics/recovery.pdf
4. https://learning.oreilly.com/library/view/designing-data-intensive-applications/9781491903063/
5. https://arxiv.org/pdf/1208.4179
6. https://www.postgresql.org/docs/17/wal-intro.html
7. https://dev.mysql.com/doc/refman/8.4/en/innodb-multi-versioning.html
8. https://dev.mysql.com/doc/refman/8.4/en/innodb-locking.html
9. https://arxiv.org/abs/2310.04601
